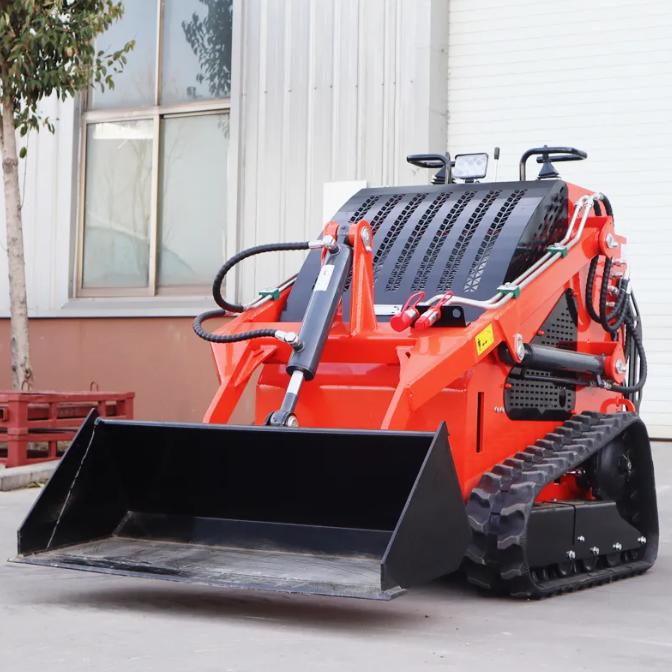

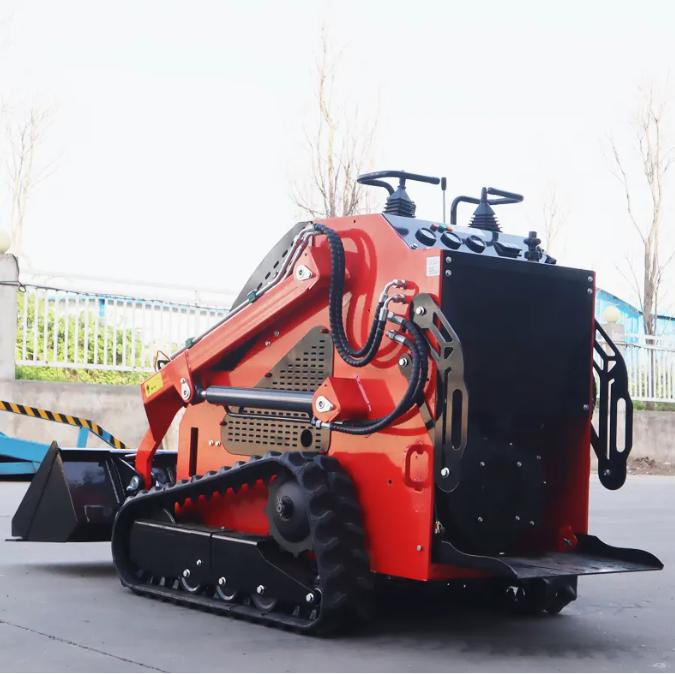

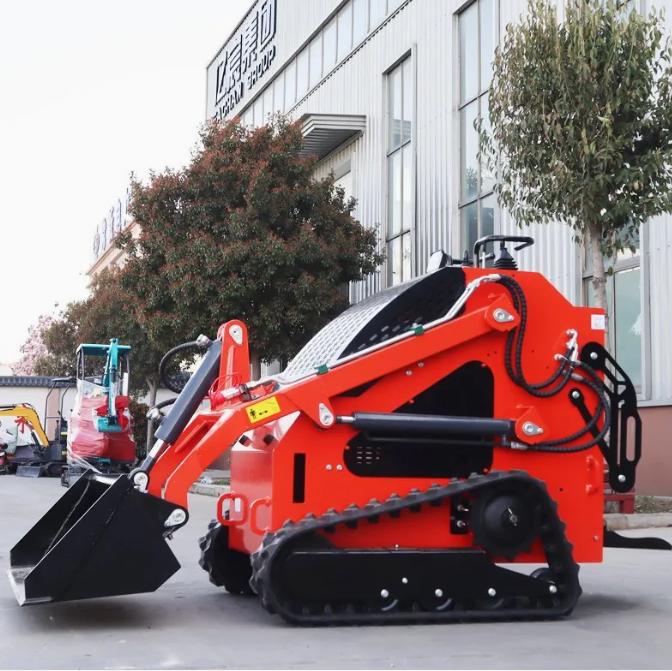

Skid Steer Loader
| Engine Brand | Zhongcheng(EPA) / KOOP/ Briggs & Stratton |
Height at Maximum Extension/mm | 2450 | |
| Rated Power/KW | 13.5 | Height To the the bucket pin /mm | 1870 | |
| Rated Speed/rpm | 3000 | Vehicle height | 1250 | |
| Number of cylinders | 1 | Maximum Height as Lay the bucket flat/mm | 1810 | |
| Air intake way | Naturally Aspirated | Total length without appendages/mm | 1450 | |
| Displacement/cc | 420 | Length With standard bucket /mm | 2100 | |
| Emissions Standards | EUR 5-EPA | Maximum height unloading Angle | 34° | |
| Rated Operating Capacity/Kg | 200 | Dumping Height/mm | 1510 | |
| Maximum Operating Capacity/Kg | 300 | Discharge Distance/mm | 450 | |
| Maximum Breakout Force/KN | 350 | The flip Angle of the bucket on the ground | 27° | |
| Bucket Capacity/m3 | 0.12 | Bucket flip Angle at highest Pos. | 114° | |
| Driving Speed/ km/h | 0-6 | Wheel Base/mm | 850 | |
| Total Cycling Time/s | 9 | Ground Clearance/mm | 150 | |
| System Operating Pressure /bar | 17-21 | Tail Length/mm | 280 | |
| Fuel Tank Capcity/L | 5 | Wheelbase (standard tire) /mm |
720 | |
| Operating Weight/Kg | 900 | Vehicle width (standard tire) /mm |
800/1030 | |
| Tyre Size | 18/500-8 | Bucket width/mm | 900/1000 | |
