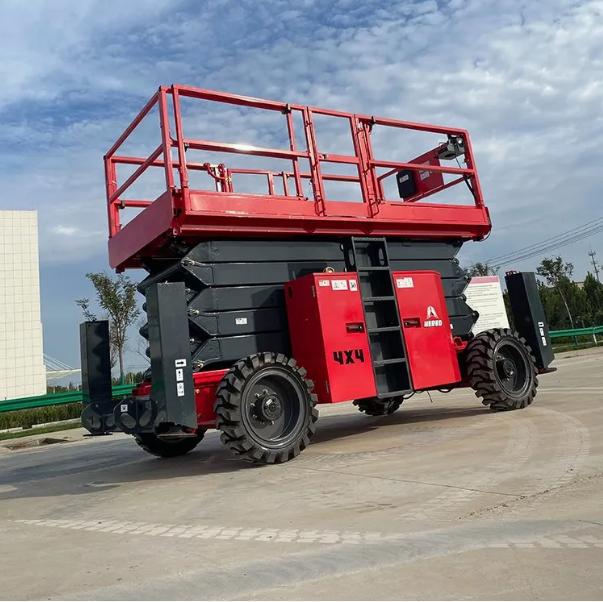

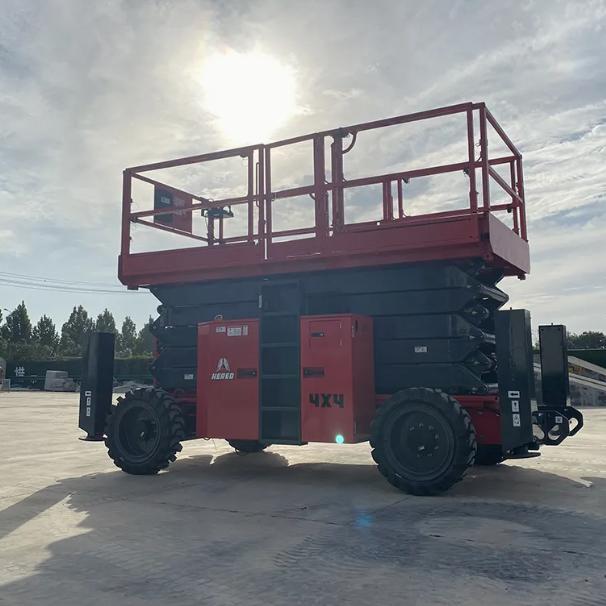

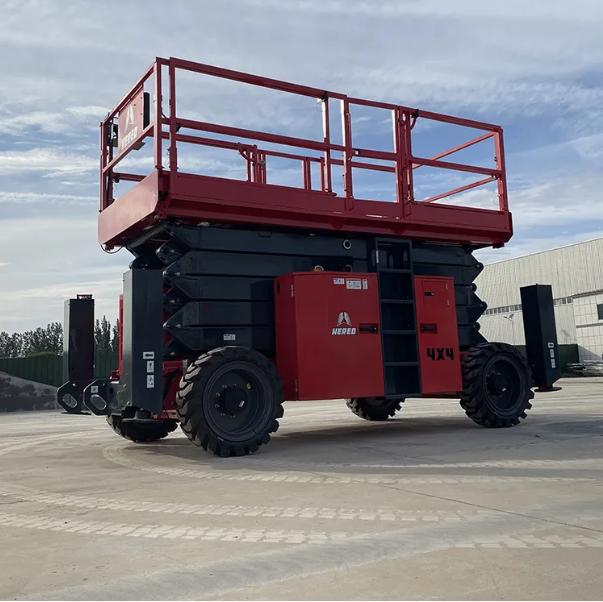

Scissor Lift
| Max.Working Height | 17.95m |
| A-Max. Platform Height(In/out) | 15.95m |
| Platform Dimension (B×C) | 3.81X1.83m |
| Front Platform Extension Length | 1.536m |
| Rear Platform Extension Length | 1.231m |
| D-Heights (Rails Up) | 3.21m |
| Height (Rails Down) | 2.44m |
| E-Length (with Ladder) | 4.88m |
| Overall Width with Outriggers | 2.29m |
| F-Ground Clearance | 260mm |
| G-Wheel Base | 2862mm |
| PERFORMANCE | |
| Platform Capacity | 680kg |
| Extension Capacity | 230kg |
| Max. Occupancy(in/out) | 4/4 |
| Max.Wind Speed | 12.5m/s |
| Drive Height | 8.5m |
| Drive Speed (Stowed) | 6.1km/h |
| Drive Speed (Raised) | 1.1km/h |
| Up/Down Time | 55/65s |
| Turning Radius (Out.) | 3.9m |
| Tilt Rating (Front to Rear/Side to Side) | 3°/2° |
| Gradeability | 0.4 |
| Max Outrigger Leveling (Front to Rear) | 7° |
| Max Outrigger Leveling (Side to Side) | 12° |
| Tires Size (mm) | 33X12-20 |
| POWER | |
| Engine | Ku bo ta V2403 |
| Drive | FWD |
| WEIGHT | |
| Hydraulic Oil Tank Capacity | 120L |
| Fuel Tank Capacity | 120L |
| Weight | 7980kg |
