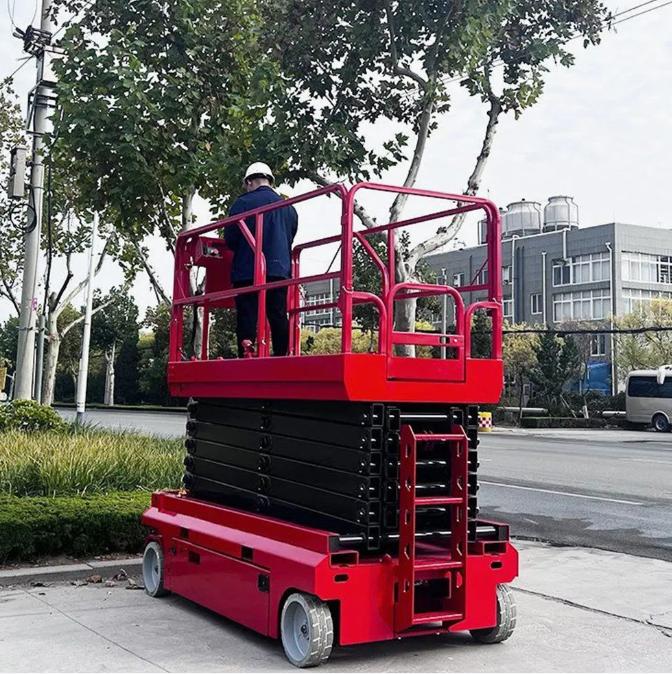

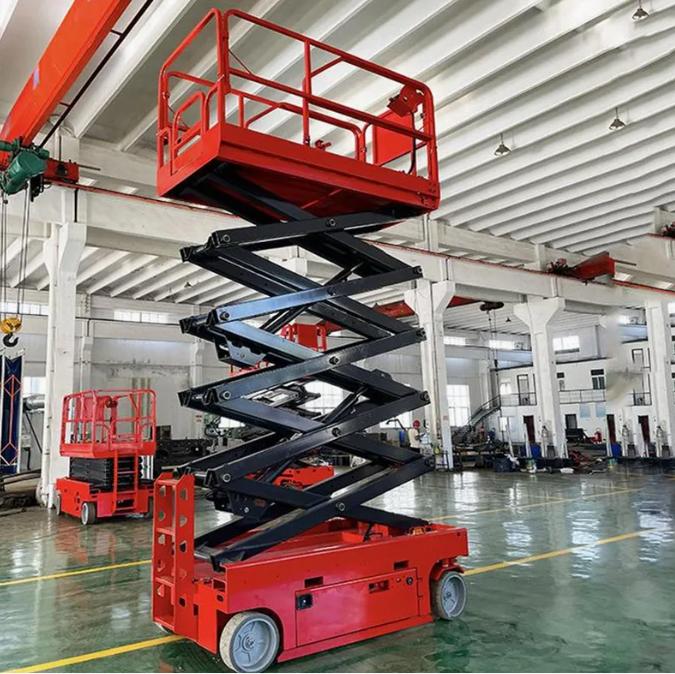

Scissor Lift
| oad | Lifting Height (M) |
Table Size (M) |
Dimensions (M) |
Cylinder | Power (KW) |
Voltage (V) |
Weight (KG) |
Guardral Height |
Tire Size |
| 500KG | 4 | 2.10*0.83 | 2.25*0.95*1.10 | 80*1 | 1.1 | 220/380 | 800 | 1.1M | 400-8 |
| 6 | 2.10*0.83 | 2.25*0.95*1.20 | 80*1 | 1.1 | 220/380 | 880 | 1.1M | 400-8 | |
| 7 | 2.10*0.83 | 2.25*0.95*1.28 | 80*1 | 1.1 | 220/380 | 970 | 1.1M | 400-8 | |
| 8 | 2.10*0.93 | 2.25*1.06*1.38 | 80*2 | 1.5 | 220/380 | 1050 | 1.1M | 400-8 | |
| 9 | 2.10*0.93 | 2.25*1.06*1.50 | 80*2 | 1.5 | 220/380 | 1165 | 1.1M | 400-8 | |
| 10 | 2.10*1.23 | 2.25*1.35*1.53 | 70*4 | 2.2 | 380 | 1360 | 1.1M | 500-8 | |
| 11 | 2.10*1.23 | 2.25*1.35*1.65 | 70*4 | 2.2 | 380 | 1400 | 1.1M | 500-8 | |
| 12 | 2.55*1.53 | 2.80*1.67*1.75 | 80*4 | 3.0 | 380 | 2260 | 1.1M | 500-8 | |
| 14 | 2.81*1.53 | 3.07*1.73*1.81 | 80*4 | 3.0 | 380 | 2400 | 1.1M | 500-8 | |
| 16 | 2.81*1.60 | 3.07*1.81*2.08 | 90*4 | 3.0 | 380 | 3500 | 1.1M | 700-9 | |
| 18 | 3.07*1.60 | 3.32*1.81*2.08 | 90*4 | 3.0 | 380 | 3900 | 1.1M | 700-9 |
