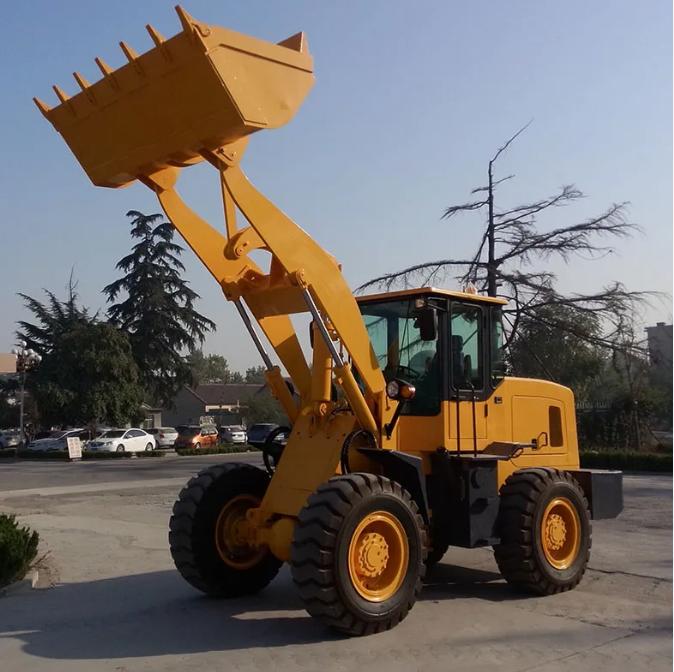

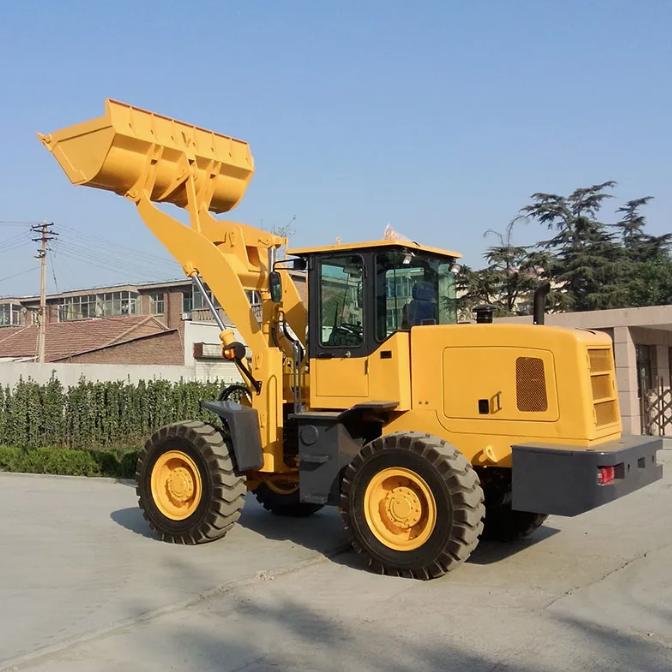

Front Wheel Loader
| 1 | Bucket capacity | 1.7(m3) | |
| 2 | Rated load | 3000(Kg) | |
| 3 | Overall dimension | 7050-2430*3120(mm) | |
| 4 | Wheel base | 2760(mm) | |
| 5 | Thread | 1800(mm) | |
| 6 | Max. breakout force | 138KN | |
| 7 | Max dumping height | 3020/3250(mm) | |
| 8 | Dump distance | 1200(mm) | |
| 9 | Total time | 11(s) | |
| 10 | Operating weight | 9600(Kg) | |
| Diesel engine | |||
| 1 | Model | WEICHAI DEUTZ TD226B( WP6G125) | |
| 2 | Type | Six cylinders, four strokes, director injection, water cooling. | |
| 3 | Rated output | 92Kw | |
| 4 | Rated speed | 2200r/min | |
| 5 | Max. torque | 860N. m | |
| 6 | Normal fuel consumption | 162(g/kWh) | |
| 7 | Total displacement | 6(L) | |
| 8 | Fuel | 0# or -10# light diesel | |
| 9 | Starting type | electric starting | |
| 10 | Net weight | 636(kg) | |
| Transmission System | |||
| 1 | Model of Torque Converter | YJ320B-1 | |
| 2 | Type | 3-element. single stage | |
| 3 | Cooling type | Pressure oil circulating | |
| 4 | Transmission case Type | Full- power shift, counter shaft shape | |
| 5 | Gear shift position | 4 Forward and 4 reverse gears | |
| 6 | Max. travel speed | 40Km/h | |
| Axle and Tire | |||
| 1 | main reducer pattern | Arc taper gear, model ration of first stage | |
| 2 | Type of reducer | single stage planetary | |
| 3 | Size of tire | 17.5-25 | |
| Working Device Hydraulic System | |||
| 1 | Model of oil pump | CBGV2100 | |
| 2 | Displacement of the pump | 100(ml/r) | |
| 3 | System working pressure | 27.5(Mpa) | |
| 4 | Model of distribution valve | DF25.2 | |
| Steering System | |||
| 1 | Type | Middle articulated frame. full hydraulic power | |
| 2 | Mini. Turning radius(outside of bucket) | 5700(mm) | |
| 3 | Max. turning angle | 37° ± 1 | |
