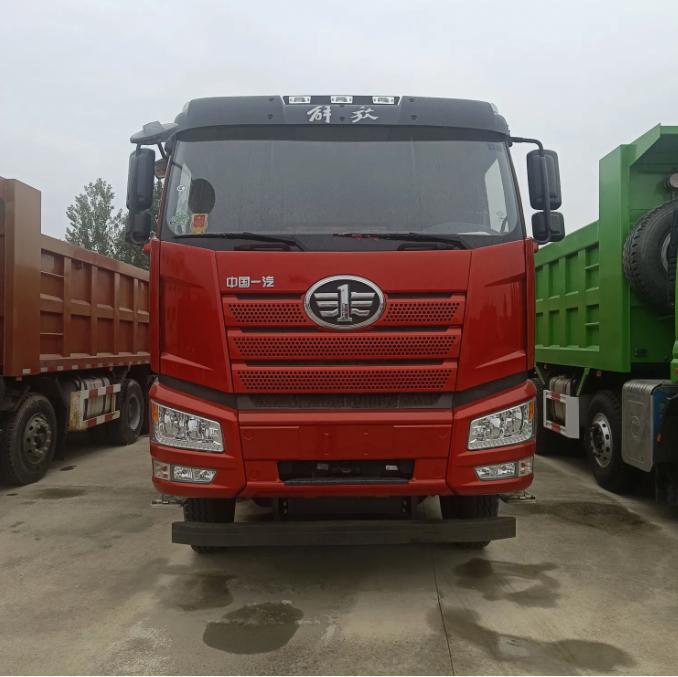

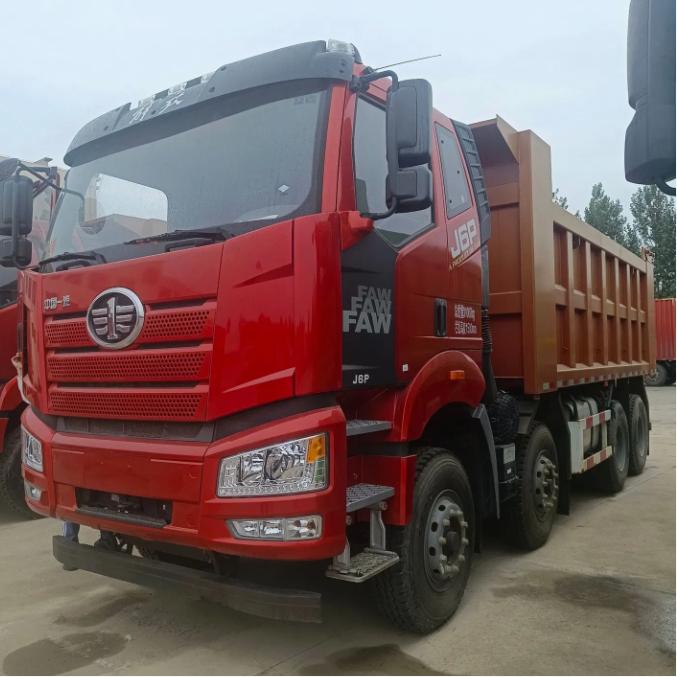

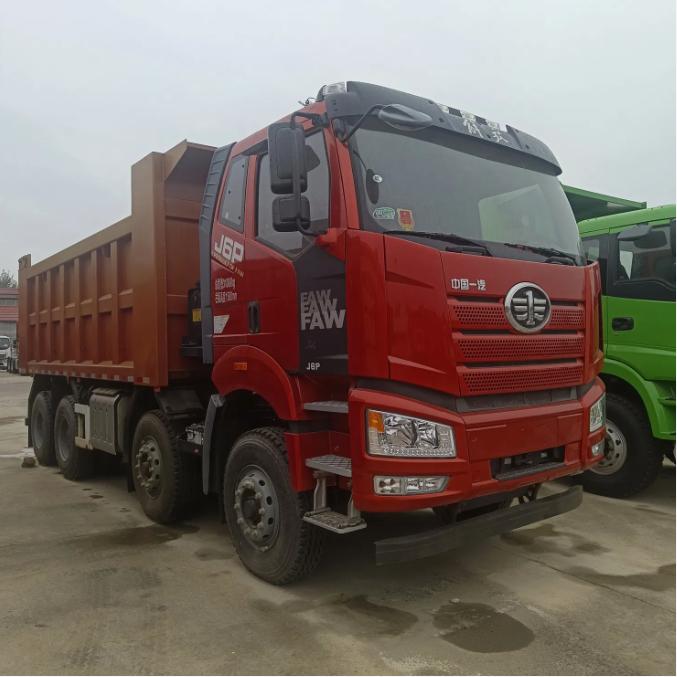

Dump Truck
| Driving license: | A1,A2,B2 | Announcement model: | CA3310P66K24L1T4E6 |
| Drive form: | 8X4 | Wheelbase: | 1950+2650+1350mm |
| engine: | Xichai CA6DM2-42E6 | Gearbox: | FAW Jiefang CA12TAX190M |
| Body length: | 9.445 meters | Body width: | 2.55 meters |
| Body height: | 3.6 meters | Front wheelbase: | 2020/2020mm |
| Rear wheelbase: | 1878/1878mm | Vehicle weight: | 15.5 tons |
| Rated load: | 15.305 tons | Total mass: | 31 tons |
| Tonnage level: | Heavy truck | Approach angle: | 24 degrees |
| Departure angle: | 23 degrees | Origin: | Changchun/Qingdao/Chengdu |
| Market segments: | Urban construction debris | Fuel type: | diesel fuel |
| Engine parameters | |||
| Engine model: | Xichai CA6DM2-42E6 | Engine brand: | xichai |
| Number of cylinders: | 6 cylinder | Fuel type: | diesel fuel |
| Displacement: | 11.05L | Emission standards: | Euro 3 |
| Maximum horsepower: | 420 HP | Maximum output power: | 312kW |
| Maximum torque: | 2200Nm | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1800rpm | Engine form: | Six-cylinder, in-line, supercharged and intercooled |
| Carton parameters | |||
| Carton length: | 5.6 meters | Cargo box width: | 2.35 meters |
| Cargo box height: | 1.5 meters | Container form: | Self-unloading |
| Gearbox parameters | |||
| Gearbox model: | FAW Jiefang CA12TAX190M | Gearbox brand: | FAW Jiefang |
| Forward gear: | 12 gears | Number of reverse gears: | 2 |
| Chassis parameters | |||
| Allowable load on front axle: | 6500/6500kg | Allowable load on rear axle: | 18000(two-axle group)kg |
| Number of spring leaves: | 2010/10/12 | ||
| tire | |||
| Tire specifications: | 11.00R20 | Number of tires: | 12 |
