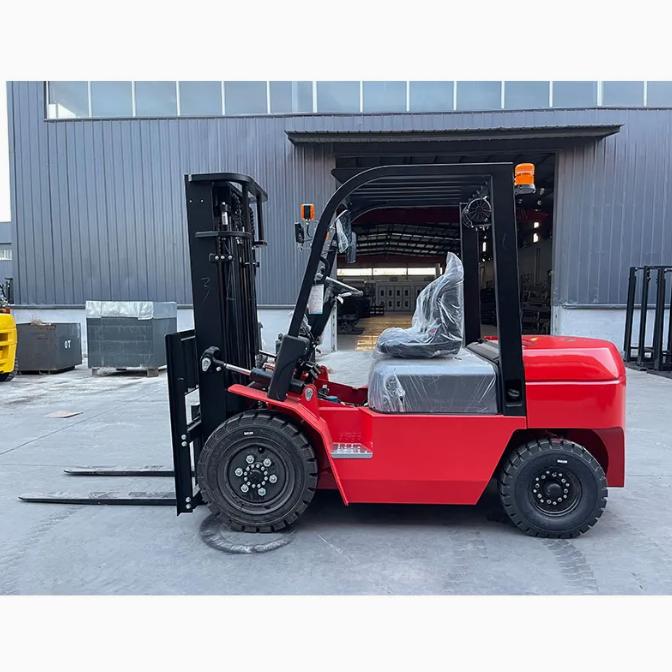

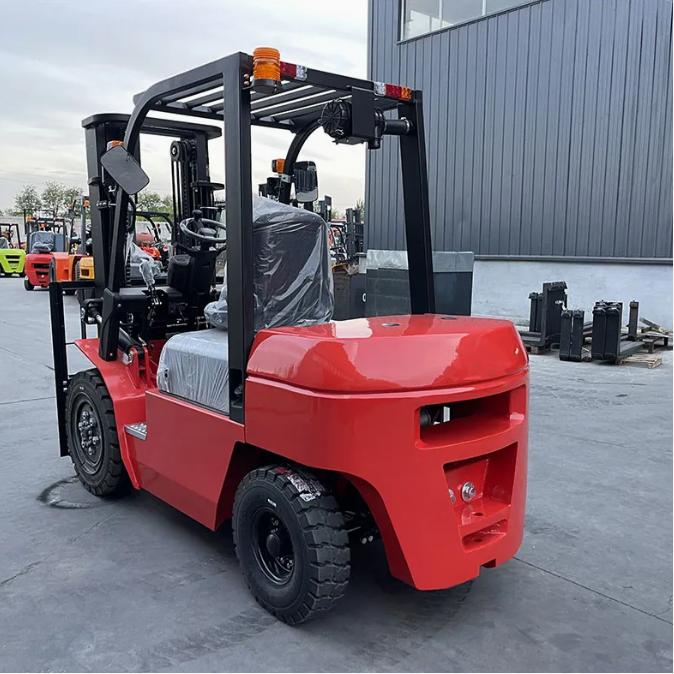

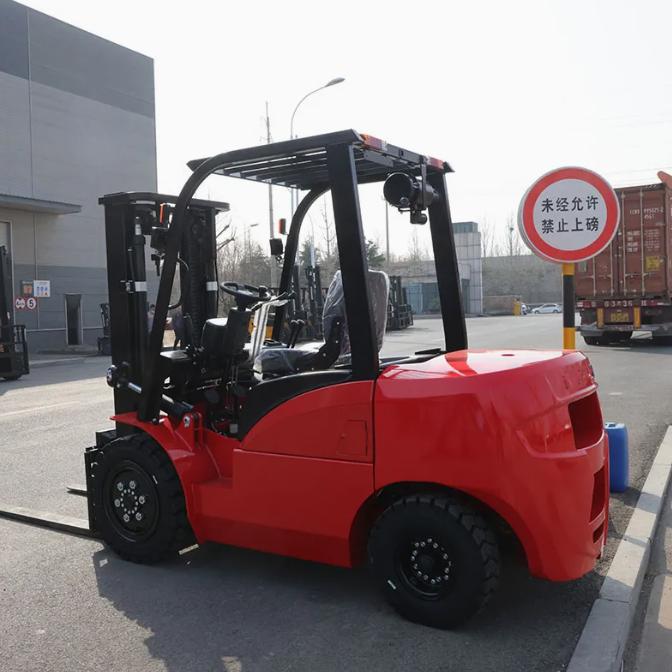

Forklift
| Model | CPCD15 | CPCD20 | CPCD25 | CPCD30 | CPCD35 | CPCD40 | CPCD50 | CPCD60 | CPCD70 | CPCD80 | CPCD100 | |
| Rated Lifting Load | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 | 10000 |
| Load Center Distance | mm | 500 | 500 | 500 | 600 | 600 | ||||||
| Free lifting Height | mm | 100 | 150 | 160 | 150 | 210 | 200 | 200 | ||||
| Overall Length(With Fork/Without Fork) | mm | 3180/2260 | 3422/2502 | 3646/2576 | 3752/2682 | 3763/2693 | 4000/2930 | 4690/3510 | 4720/3590 | 4810/3680 | 5497/4277 | 5497/4277 |
| Width | mm | 1090 | 1170 | 1225 | 1290 | 1970 | 2245 | 2245 | ||||
| Overhead Guard Height | mm | 2050 | 2070 | 2090 | 2180 | 2500 | 2570 | 2570 | ||||
| Wheelbase | mm | 1400 | 1600 | 1700 | 1900 | 2250 | 2800 | 2800 | ||||
| Minimum Ground Clearance | mm | 110 | 135 | 140 | 230 | 250 | 250 | |||||
| Mast Tilt Angle(Front/Rear) | % | 6/12 | 6/12 | 6/12 | 6/12 | 10/12 | ||||||
| Tire No(Front ) | 6.5-10-10PR | 7.00X12-12PR | 28X9-15-14PR | 250-15-16PR | 8.25-15-14PR | 825-20 | 9.00-20NHS | |||||
| Tire No(Rear) | 5.00-8-10PR | 6.00X9-10PR | 6.5-10-10PR | 7.00-12-12PR | 8.25-15-14PR | 825-20 | 9.00-20NHS | |||||
| Minimum Turning Radius(Outside) | mm | 1950 | 2170 | 2240 | 2400 | 2420 | 2710 | 4080 | 4120 | 4180 | 4150 | 4150 |
| Minimum Right Angle Aisle Width | mm | 3630 | 3900 | 3970 | 4260 | 4750 | 5230 | 5290 | 5360 | 6010 | 6010 | |
| Fork Size | mm | 1070X100X45 | 1220X125X45 | 1220X125X45 | 1220X150X60 | 1520X175X85 | ||||||
| Maxmum Working Speed(Full-Load/No Load) | km/h | 14/15 | 17/19 | 18/19 | 19/19 | 19/19 | 24/29 | 23/29 | 22/29 | 20/26 | 20/26 | |
| Maxmum Speed Speed(Full-Load/No Load) | mm/s | 500/480 | 530/550 | 440/480 | 330/370 | 340/380 | 510/530 | 500/530 | 500/480 | 330/350 | 330/350 | |
| Maximum Gradeability (Full-Load/No Load) | % | 20/21 | 15/20 | 15/20 | 15/20 | 15/20 | ||||||
| Total Weight | kg | 2900 | 3320 | 3680 | 4250 | 4500 | 4950 | 8400 | 8900 | 9600 | 11800 | 12410 |
