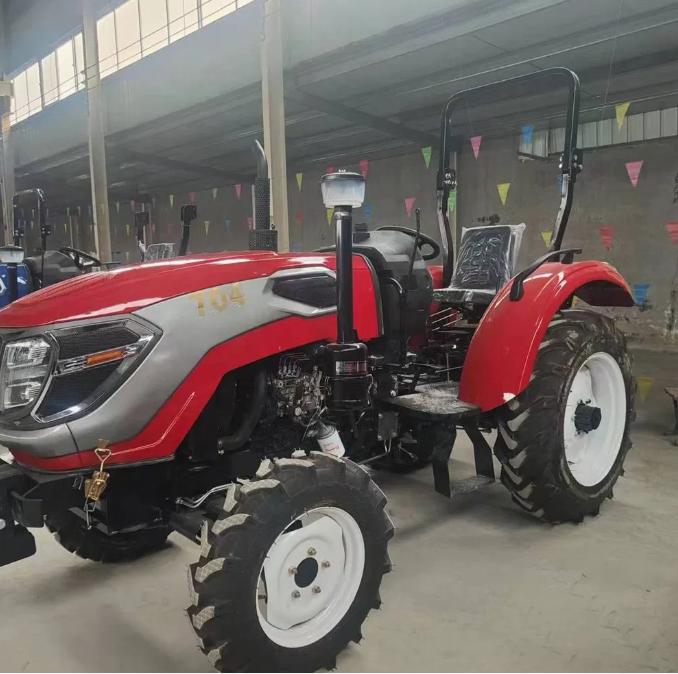

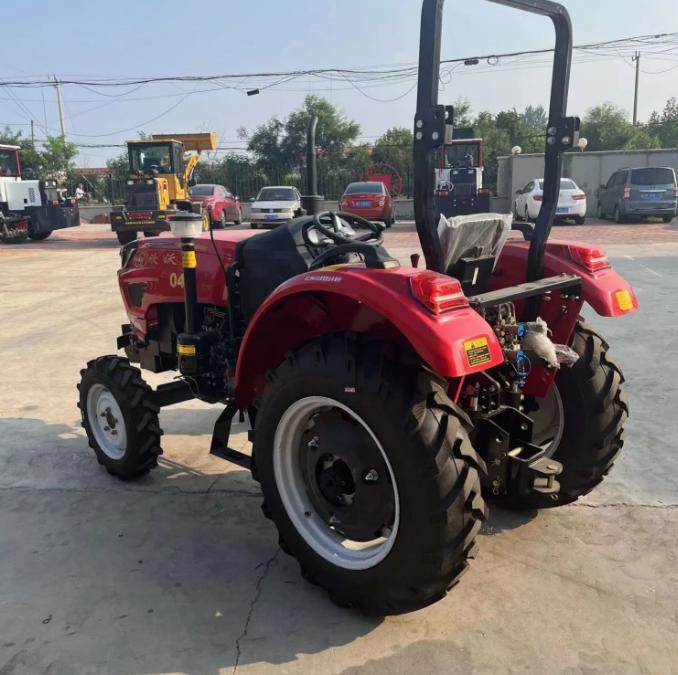

Farm Tractor

  • Description
Power(hp) / 70hp
External dimension (L × W × H) mm 4000×1850×2650
wheel base mm 2050
Commonly used wheel tread(front/rear) or gauge mm 1250/1400
wheel tread(front/rear) or gauge mm 1250,1305,1405/1250-1560
Minimum ground clearance and position mm 370 (bottom of traction plate)
Minimum weight kg 2600
Standard Counterweight (Front/Rear) kg 130/75
Number of gears (forward/backward) / 12/12
Maximum theoretical design speed km/h 33.59
Engine structure / Inline, water-cooled, four-stroke
Engine intake mode / turbocharging
Number of engine cylinders / 4
Engine nominal power kW 66.15
Engine calibration speed r/min 2400
Engine cooling mode / water cooling
Hydraulic suspension system type / separate

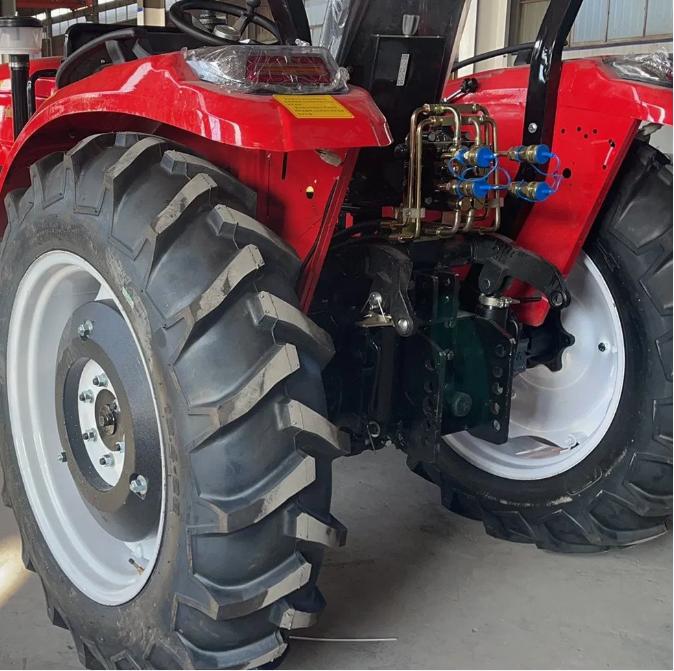

Type of suspension / Three-point rear suspension
Standard speed of power output shaft r/min 540/720
