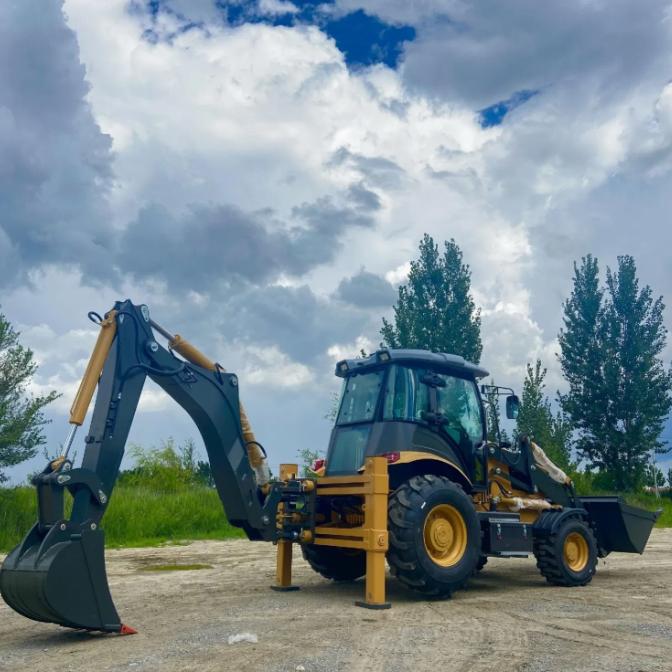

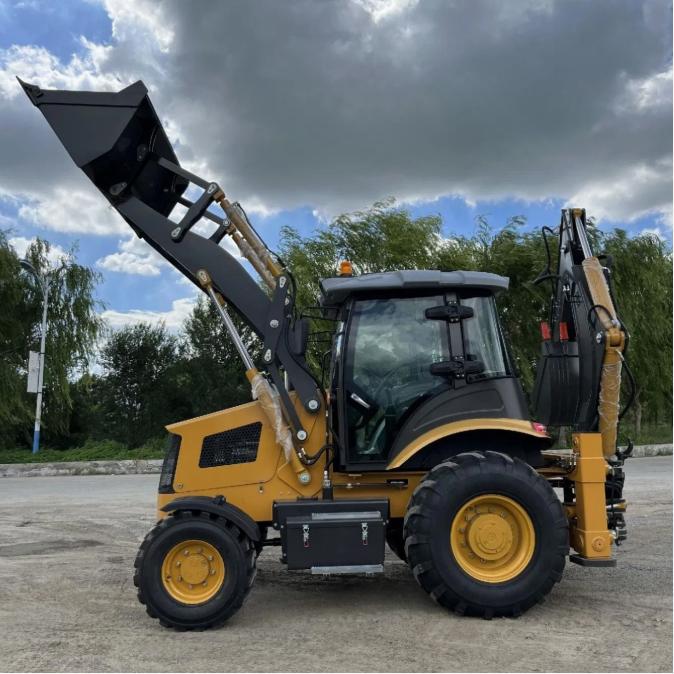

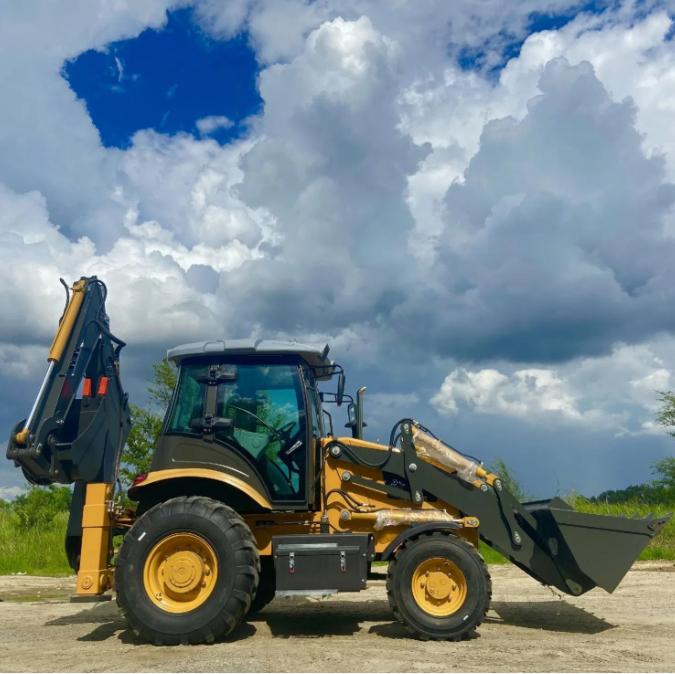

Backhoe Loader
| 1 | External dimensions(mm) | 6150 * 2350 * 3763 | 1 | model | Yuchai 4105 |
| 2 | Wheelbase (mm) | two thousand and two hundred |
2 | form | Turbocharging |
| 3 | Track width (mm) | 1850/2000 | 3 | Rated power (KW) | eighty-five |
| 4 | Minimum ground clearance (mm) | three hundred | 4 | Rated speed (r/min) | two thousand and four hundred |
| 5 | Minimum turning radius (mm) | six thousand five hundred and eighty |
5 | Number of cylinders- inner diameter | 4-105 |
| Performance parameters | Transmission system | ||||
| 1 | System pressure (Mpa) | twenty-eight | 1 | Transmission | Fixed axis power shift |
| 2 | Overall weight (KG) | seven thousand and four hundred |
2 | Number of gears | Front 2 Back 2 |
| 3 | Maximum speed (km/h) |
20-35 | 3 | Hydraulic torque converter |
YJ280 |
| 4 | Maximum Climbing Capacity (°) | thirty-five | Bridge | ||
| Mining parameters | 1 | form | First stage wheel reduction bridge | ||
| 1 | Maximum Expansion Excavation Depth (mm) |
four thousand | Tires | ||
| 2 | Excavation unloading height (mm) |
four thousand and five hundred |
1 | specifications | 14-17.5/19.5L-24 |
| 3 | Maximum excavation radius (mm) |
five thousand and eight hundred |
2 | service brake | Air top oil caliper disc brake |
| 4 | Maximum lifting height (mm) |
six thousand and sixty |
3 | Parking brake | Pneumatic brake |
| 5 | Maximum excavation force (KN) |
thirty-six | Oil quantity | ||
| 6 | The maximum excavation radius of the excavator bucket is mm | eight hundred and forty | 1 | Fuel quantity (L) | one hundred |
| 7 | Digging bucket capacity(m) ³ | zero point three | 2 | Hydraulic oil tank (L) | one hundred |
| 8 | Excavator rotation angle (°) |
one hundred and ninety |
Other | ||
| Loading parameters | 1 | Drive mode | Four wheel drive | ||
| Maximum unloading height (mm) | two thousand seven hundred and forty-two | 2 |
Variable speed mode | Hydraulic variable speed | |
| Maximum unloading distance (mm) | one thousand and sixty-two |
3 |
control system | Electromagnetic hydraulic pilot control | |
