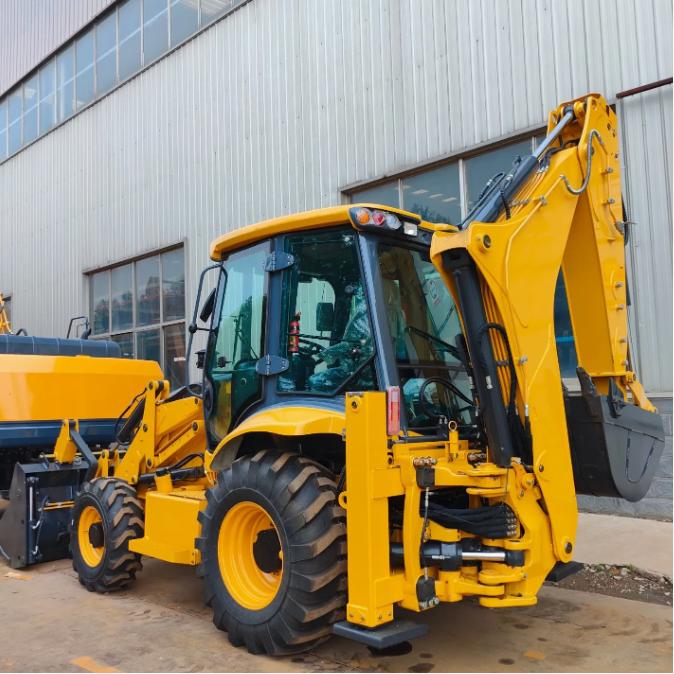

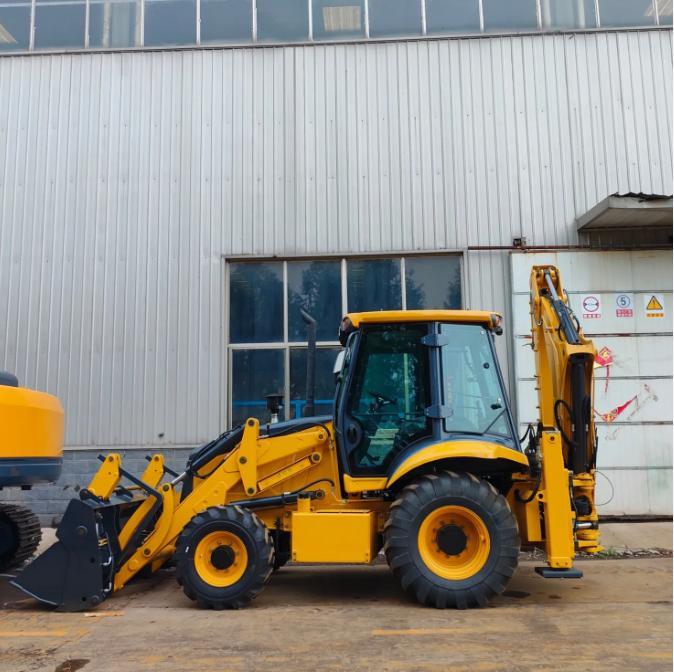

Backhoe Loader
| Engine model | YCAA105Z 4BTA3.9-C100-ll |
| Total power/speed (kW/rpm) | 75/2200 74/2200 |
| Total length of the entire machine (mm) | 6355 |
| Total width (mm) | 2400 |
| Total height (mm) | 3700 |
| Minimum ground clearance (mm) | 362 |
| Work mass (kg) | 9250 |
| Front wheel width (mm) | 2230 |
Multi functional bucket (four in one loading bucket) standard loading bucket
Engine model YCAA105Z 4BTA3.9-C100-ll
Total power/speed (kW/rpm) 75/2200 74/2200
Total length of the entire machine (mm) 6355
Total width (mm) 2400
Total height (mm) 3700
Minimum ground clearance (mm) 362
Work mass (kg) 9250
Front wheel width (mm) 2230
Rear wheel width (mm) 2295
Lifting load at maximum height (kN) 34
Bucket digging force (kN) 58
Bucket capacity (m3) 1
Bucket width (mm) 2365
Bucket weight (kg) 867
Excavation deflection angle 180
Maximum digging force of the bucket handle (kN) 43/42/30.4
Maximum excavation force of excavator bucket (kN) 73.1/72.2/72.2
0.32m3 excavator bucket width (mm) 690
Bucket weight (kg) 260
