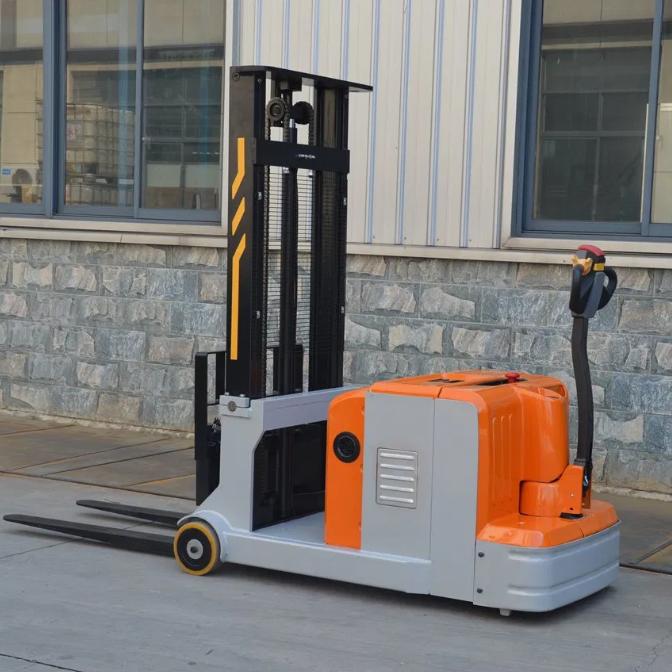

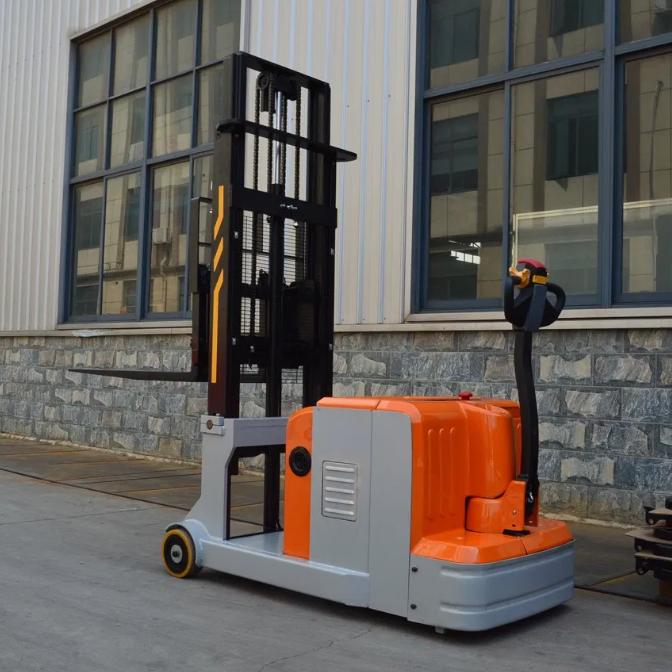

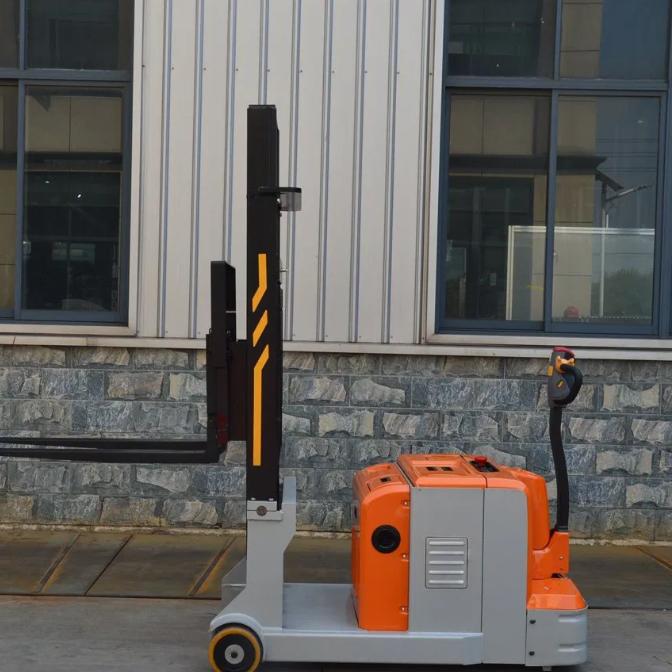

Electric Stacker
| 1.2 | Model | CDDA20 | ||
| 1.3 | Operation | Walkie | ||
| 1.4 | Rated traction weight | Q(kg) | 2000 | |
| 1.5 | Mast type | Singel mast | 2-stage | |
| 1.6 | Lift | h3(mm) | 1600 | 2000/2500/3000/3500 |
| 1.7 | Capacity at highest height | kg | 2000 | 2000/1900/1500/1100 |
| 1.8 | Service weight with battery | kg | 525 | 595/630/650/690 |
| 1.9 | Load centre | c(mm) | 500 | |
| 1.10 | Axle centre to fork face | x(mm) | 735 | |
| 1.11 | Wheel base | y(mm) | 1251 | |
| 1.12 | Controller | WTBL4890MB-C4 tianli | ||
| 2.1 | Wheels type | Polyurethane | ||
| 2.2 | Driving wheel size | ∅×w | φ210×75 | |
| 2.3 | Bearing wheel size | ∅×w | φ80×60 | |
| 2.4 | Additional wheels(dimensions) | ∅×w | φ115×55 | |
| 2.5 | Wheels,number front/rear(x=driven) | 1x,1/4 | ||
| Dimensions | ||||
| 3.1 | Height of mast,lowered | h1(mm) | 2080 | 1580/1830/1980/2330 |
| 3.2 | Height of mast,extended | h4(mm) | 2080 | 2565/3065/3480/4065 |
| 3.3 | Fork Height,Lowered | h13(mm) | 86 | |
| 3.4 | Overall length | L1(mm) | 1854 | |
| 3.5 | Length to fork face | L2(mm) | 704 | |
| 3.6 | Overall width | b1/b2(mm) | 850 | |
| 3.7 | Fork dimensions | s/e/L(mm) | 55/165/1150 | |
| 3.8 | Width of forks | b5(mm) | 550/685 | |
| 3.9 | Min.Ground clearance | m2(mm) | 30 | |
| 3.10 | Aisle width with pallet 1000×1200 along forks | Ast(mm) | 2377 | |
| 3.11 | Aisle width with pallet 800×1200 along forks | Ast(mm) | 2307 | |
| 3.12 | Min.Turning radius | Wa(mm) | 1494 | |
| Performance | ||||
| 4.1 | Travel spees,with/without load | (km/h) | 4.2/4.5 | |
| 4.2 | Lifting speed,with/without load | (mm/s) | 75/100 | |
| 4.3 | Lowering speed,with/without load | (mm/s) | 85/95 | |
| 4.4 | Max.gradeability laden/unladen | (mm/s) | 4/7 | |
| 4.5 | Service brake | (%) | Electromagnetic brake | |
